 Packaged Plant or Skid Assembly

A skid assembly or packaged plant room, often referred to as a modular process skid, is a self-contained, pre-engineered system that integrates various components such as pumps, valves, heat exchangers, tanks, and instrumentation into a single, transportable frame. These assemblies are designed for efficient transportation, installation, and operation across various industries.​

A number of companies produce packaged plant rooms which are delivered to site pre-assembled resulting in savings in both time and costs. These units may be accommodated within the building or are containerised for locating outside the building or on the roof top.

​

What Is a Skid Assembly?

A skid assembly is essentially a compact process system built onto a steel-reinforced frame. This design enhances durability and facilitates easy transport and installation. Skid assemblies can function independently or be combined to form larger systems or complete modular process plants .​EPC Industrial Services

Common Applications

Skid assemblies are utilized across multiple industries, including:​

  • Pharmaceuticals: Processes like mixing, filtration, and clean-in-place (CIP) systems.

  • Food & Beverage: Applications such as pasteurization, blending, and dosing.

  • Oil & Gas: Systems for fluid handling, gas separation, and chemical injection.

  • Chemical Processing: Operations like solvent recovery, distillation, and reaction processes.​

Key Benefits

  • Off-Site Fabrication: Skid assemblies are constructed in controlled environments, ensuring consistent quality and reducing on-site labor requirements.

  • Plug-and-Play Installation: They are designed for quick integration into existing facilities, minimizing downtime.

  • Modularity: Multiple skids can be interconnected to expand or modify processing capabilities as needed.

  • Enhanced Safety and Cleanliness: Especially critical in industries like pharmaceuticals and food processing, where hygiene standards are stringent .​

Assembly Process Overview

  1. Design & Engineering: Tailored to specific process requirements, considering factors like flow rates, pressure, and temperature.

  2. Component Selection: Choosing appropriate equipment and materials compatible with the intended process.

  3. Fabrication: Assembling components onto the skid frame, including piping, wiring, and instrumentation.

  4. Testing: Conducting factory acceptance tests (FAT) to verify performance and compliance with specifications.

  5. Transportation & Installation: Shipping the skid to the site for final integration and commissioning.

Here’s a high‑level breakdown of the typical “Skids Assembly” stage in a process‐equipment project. Depending on your industry (oil & gas, chemical, water treatment, etc.) and your company’s procedures, you may adapt or expand these steps—but this should serve as a solid template.

1. Preparation & Planning

  1. Review of Design & Documentation

    • Fabrication drawings & isometrics

    • Piping and instrument diagrams (P&IDs)

    • Electrical & instrumentation cable schedules

    • Mechanical datasheets (pumps, valves, vessels)

  2. Materials & Parts Verification

    • Structural steel skid frames

    • Pre‑spooled pipe spools & fittings

    • Equipment loose‑items (pumps, instruments, skids‑mounted panels)

    • Cable trays, junction boxes, conduits

2. Mechanical Fit‑Up

  1. Skid Frame Assembly

    • Align and weld structural members; check flatness and level.

    • Apply primer or protective coating to welds as needed.

  2. Equipment Mounting

    • Bolt or weld major items (pumps, vessels, heat exchangers) to the frame per mounting pads.

    • Torque‐check anchor bolts.

  3. Pipe Spool Installation

    • Position and tack‑weld spools in sequence, following isometric tags.

    • Confirm piping routings avoid interference and allow access.

3. Welding, NDT & Coating

  1. Welding

    • Complete all groove and fillet welds.

    • Maintain weld procedure specs (WPS) for material and thickness.

  2. Non‐Destructive Testing (NDT)

    • Radiography, ultrasonic, Dye Penetrant or MPI as per code.

    • Document all inspection reports.

  3. Coating & Insulation

    • Blast profile check.

    • Apply intermediate and finish coats.

    • Install pipe insulation and jacketing if required.

4. Electrical & Instrumentation

  1. Cable Tray & Conduit Installation

    • Secure trays to skid structure; maintain cable bend radii.

  2. Panel & Junction Box Mounting

    • Install control panels, marshalling racks, junction boxes.

    • Label per cable schedule.

  3. Wiring & Terminations

    • Pull and dress cables; terminate per schematics.

    • Perform continuity & insulation resistance tests.

  4. Loop Checkout

    • Energize instrument loops; verify 4–20 mA, digital communications, HART.

5. Pre‑Commissioning & FAT Preparation

  1. Hydrostatic & Pneumatic Testing

    • Pressure‐test piping at specified test pressures; monitor for leaks.

  2. Functionality Checks

    • Rotate motors by hand; verify alignment.

    • Operate valves, actuators, relief devices.

  3. Instrumentation Calibration

    • Calibrate pressure, temperature, flow instruments against traceable standards.

  4. FAT Documentation Package

    • As‑built drawings & as‑built cable schedules

    • NDT reports, weld maps

    • Test certificates (hydro, paint, insulation, calibration)

    • Operation & maintenance (O&M) manuals

6. Factory Acceptance Test (FAT)

  • Witnessed Testing by client / 3rd‑party inspector

  • Performance Runs under simulated process conditions

  • Punch‑list Closure—any discrepancies are logged, rectified, and re‑tested

  • Sign‑off & Release for Packing

7. Packing, Preservation & Dispatch

  • Drain & Dry all piping and equipment

  • Corrosion Protection—VPI or VCI film inside tight spaces

  • Crating & Skid Lifting—fit shipping skids, apply lifting lugs, provide rigging plan

  • Shipping Documentation—packing list, shipping marks, customs paperwork

Key Deliverables & Checks

  • Checklists/Inspection Hold Points at each major stage

  • Traceability for materials, welders, and inspectors

  • Quality Plan alignment with ISO 9001 / client QAP

  • Health, Safety & Environment (HSE) compliance—Lifting plans, hot‐work permits, confined space

Tips & Best Practices

  • Modular Sequencing: Group related disciplines (e.g. all piping fit‑up before welding) to minimize re‐work.

  • Collaborative Walk‑downs: Mechanical, piping, E&I leads walk the skid together pre‑FAT to catch clashes.

  • Digital Tracking: Use a common data‑environment (CDE) to track RFIs, submittals, NCRs, and punch‑lists.

  • Training & Sign‑offs: Have each discipline sign off its scope—creates accountability and helps on‑site commissioning.

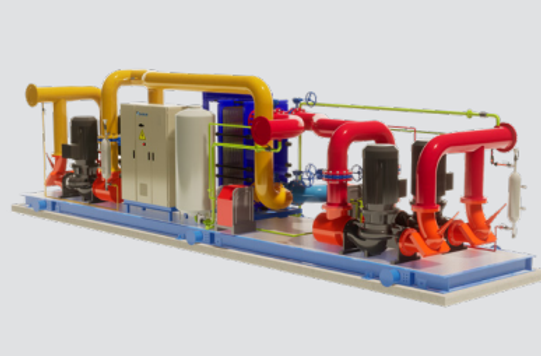

SA 2.png
